The Vertiv™ Liebert® GXT5 Lithium-Ion UPS provides the highest level of power protection for your business critical IT applications.
High Performance Online Power Protection
The Liebert® GXT5 Lithium-Ion double conversion online UPS provides both the highest level of power conditioning and battery backup for business critical IT equipment such as business network gear and servers ensuring your mission-critical applications are protected in the event of an unanticipated loss of power or an unprecedented power surge.
The Liebert® GXT5 Lithium-Ion UPS protects against the widest range of power fluctuations and automatically switches to battery backup when power loss is detected. With a 1.0 power factor (PF) and no transfer time to operation on battery, you can ensure your most critical assets are protected.
Protects Against
- Outages
- Sags
- Surges
- Spikes
- Translent
- Under-Voltage
- Over-Voltage

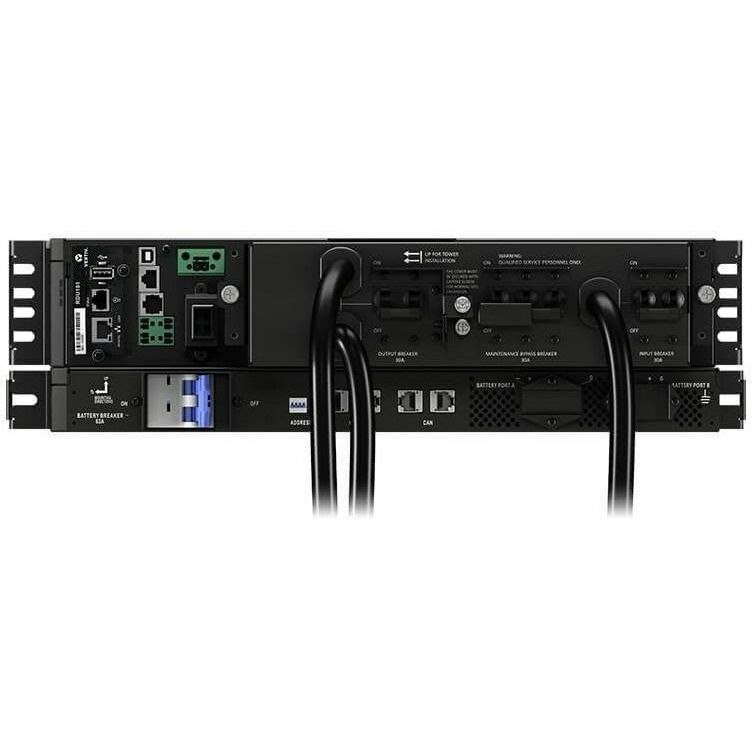

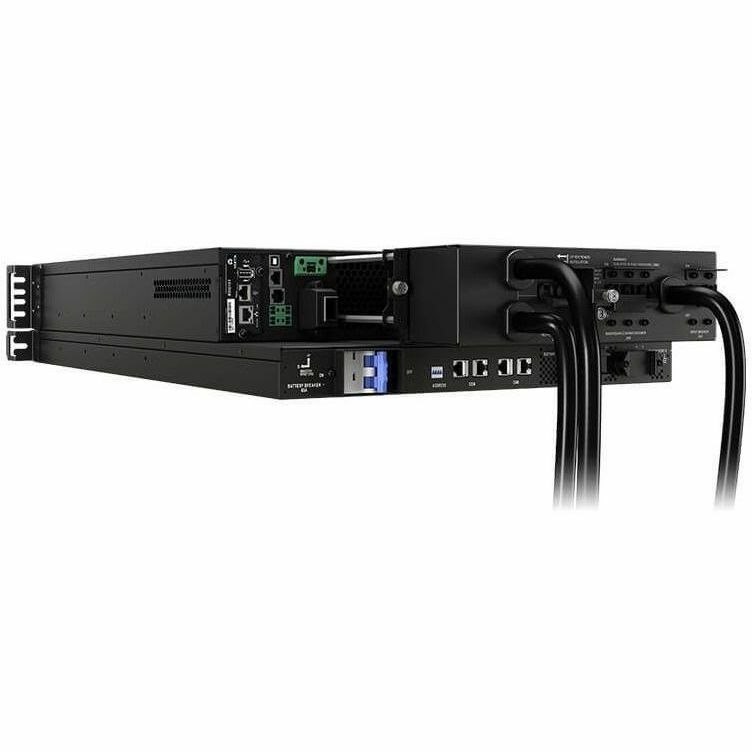

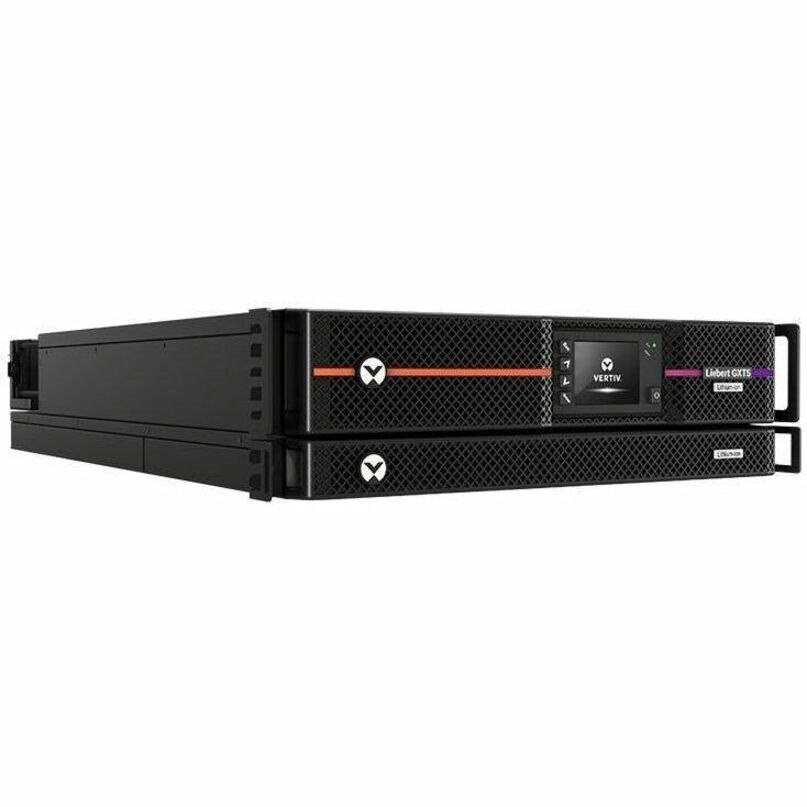

The rack/tower convertible design of the Liebert GXT5 Lithium-Ion UPS makes it ideal for edge or distributed IT applications where floor space is at a premium. It is a true low-maintenance, set-it and forget-it solution ideal for remote locations with limited onsite technical resources.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Liebert
- Product Series
- GXT5
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 5 Year
- Additional Warranty Information
5 years on UPS and Battery
- Directly Connected Equipment Guarantee
- $500000
- Technical Information
- Plug/Connector Type
- NEMA L14-30P
- Receptacle Type
- NEMA L14-30R
- Receptacle Detail
- 2 x NEMA L14-30R
- Cord Length
- 3.05 m
- Transfer Time
- 0 ns
- Efficiency Detail
- 94% (Online Mode)
- Application/Usage
- IT Equipment
- Business
- Network
- Server
- Mission Critical Equipment
- Surge Suppression
- Yes
- Features
- Built-in Bypass Switch
- Audible/Visual Alarm
- Power Description
- Load Capacity (VA)
- 5 kVA
- Load Capacity (Watt)
- 5 kW
- Input Voltage
- 120 V AC
- 230 V AC
- Output Voltage
- 120 V AC
- 230 V AC
- Input Frequency
- 40 Hz
- 70 Hz
- Output Frequency
- 40 Hz
- 70 Hz
- Waveform Type
- Pure Sine Wave
- Output Power Factor
- 1
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SNMP/Web
- Intelligent Card Slot
- Dry Contact
- Alarm
- Output Overload
- Low Battery
- Battery Replacement
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Battery Chemistry
- Lithium Iron Phosphate (LiFePO4)
- Backup/Run Time (Full Load)
- 12 Minute
- Backup/Run Time (Half Load)
- 25 Minute
- Number of External Battery Cabinets
- 1
- Battery Life
- 10 Year
- Hot Swappable
- Yes
- Battery Weight
- 22 kg
- Environmental Conditions
- Minimum Operating Temperature
- 0°C
- Maximum Operating Temperature
- 40°C
- Storage Temperature
- -20°C - 60°C
- Maximum Operating Elevation
- 3.05 km
- Physical Characteristics
- Height
- 133.4 mm
- Width
- 429.3 mm
- Depth
- 889 mm
- Rack Height
- 3U
- Form Factor
- Tower/Rack Convertible
- Weight (Approximate)
- 25.60 kg
- Miscellaneous
- Package Contents
- GXT5LI-5000MVRT3UXLN 5000VA Tower/Rack Convertible UPS
- RDU101 Card
- Rail Kit
- Certifications & Standards
- ANSI C62.41, Category B
- UL 1642 (Li-Ion Battery Cells)
- UL 1973 (Li-Ion Battery Pack w/UPS)
- UL 1778
- CSA 22.2 No. 107.3
- UL 1778
- c-UL
- NOM
- FCC Part 15
- Class A
- EC 61000-4-5
- ANSI C62.41
- Category B
- ISTA Procedure 2A
- TCO
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
